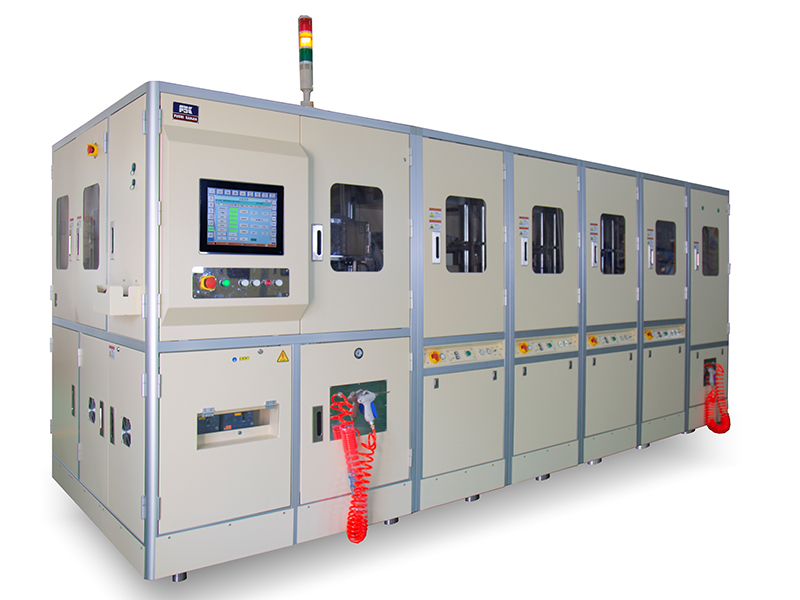

FSAM180 Auto Molding System
Publishdate：2024-09-12 Source： Views：190
Product Introduction:
Mainly used for post-process packaging of IC, semiconductor device and substrates type. The main applicable product packaging forms are: SOP, SOT, SOD, SMA, SMB, SMC, DFN, QFN, QFP, BGA, CSP, PLCC, MCM, IGBT, IPM, LED substrate, etc.
This system includes loading unit, lead frame alignment unit, lead frame traction unit, lead frame preheating unit, resin supply unit, mechanical arm of loading and unloading unit, press unit, degating unit and product storage unit.
Product Features:
◆ Max applicable L/F size: W100mm*L300 mm
◆ The new design of press unit and automatic loading and unloading units can meet high quality requirements in a wide range of fields.
◆ Suitable for packaging products like SOP, LQFP, BGA, QFN and etc.
Technical parameter
| Parameters of FSAM180 Auto Molding System | ||
| Name | Parameters | |
| L/F size | Width | 100mm |
| Length | 300mm | |
| Thickness | 0.1mm~2.0mm | |
| L/F Quantity/Shot | 2 pieces per mold | |
| Resin size | Resin diameter | 11mm--20mm |
| Resin length-diameter ratio | 1.1~1.7（Max35mm) | |
| Size of loading magazine placement area | 325mm | |
| System mechanical time | ≥28s | |
| Maximum clamping pressure (per unit) | 180T | |
| Maximum transfer pressure (per unit) | 4T | |
| Transfer stroke | ≥85mm | |
| Transfer speed | 0.1--20mm/sec | |
| 8stage speed regulation | ||
| Mold opening and closing speed | High speed140mm/sec | |
| low speed0.1--10mm/sec | ||
